Case Study
Immersion Membrane Module Case Study
Semiconductor Waste Water Treatment
Sample Photo
This products contributes to the above goals among the SDGs.
Our products is being used at Semiconductor Factory for treat waste water. He has wastewater which contain SiO2 from the process of Back Grind and Dicing.
Up to now He treated wastewater by using tap water to make its dense getting thinner. But due to He using our products he does not need to do like that. And He is using treated water from our products for reclaimed water. So he can not only reduce tap water costs but also reduce usance of water in the factory.
Hollow Fiber Membrane Filter Case Study
Drinking Water Filtration
The corresponding module is the module at the bottom of the photo.
This products contributes to the above goals among the SDGs.
This is a module that shortens the cartridge length while increasing the processing amount according to the user's request.
A longer life has been achieved by increasing the number of hollow fiber membranes compared to the normal type.
In addition,we enlarged the outlet part is able to take a high flow rate.
SPEC
- Pore Size
- 0.2μm
- Membrane Area
- 10m2
Inspection equipment parts
This products contributes to the above goals among the SDGs.
This is a very small hollow fiber membrane module used in inspection equipment.
By switching from the overseas product that was used in the past to our product, we have made it possible to shorten delivery times and improve quality.
SPEC
- Pore Size
- 0.1μm
- Membrane Area
- 0.1m2
Recovering Valuable Metals
Sample Photo
This products contributes to the above goals among the SDGs.
This filter is used for the recovery of valuable metals contained in raw water.
The filling density of the hollow fiber membrane has been improved to raise the recovery efficiency.
Moreover, the edges have been widened so that the collected material can be used in order to improve the peelability.
SPEC
- Pore Size
- 0.1μm
- Membrane Area
- 3.0m2
New Cross-flow MF Spiral Membrane Module Case Study

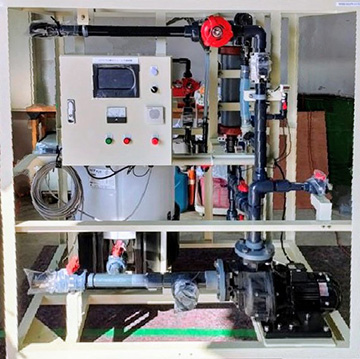

A certain aquatic feed factory
This products contributes to the above goals among the SDGs.
Our spiral membrane module enables microalgae to be concentrated to high levels.
By operating at low pressure and low circulation volume, it is possible to efficiently collect microalgae, which serve as food for zooplankton, without damaging the algal cells, achieving a high cell count of over 10 billion cells per milliliter.
In addition, by using a top joint connection with the piping, it has become possible for a single person to replace the module, which was difficult with conventional methods (UF hollow fiber membranes).
SPEC
- Pore Size
- 0.25μm
- Membrane Area
- 8m2

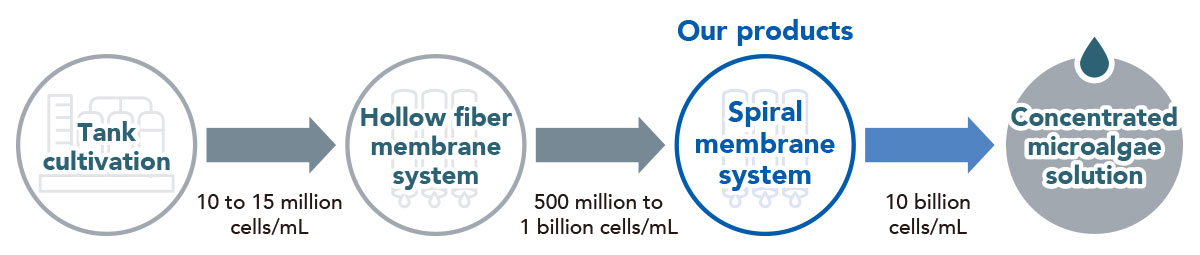

Microalgae Concentration Flow
Nannochloropsis
