Yuasa Cartridge Filters

Yuasa Cartridge Filters

The high-accuracy membrane cartridge filter was developed by Yuasa Membrane Systems using its proprietary technology.

The cartridge filter of Yuasa Membrane Systems retains the high filtration accuracy of a membrane filter and allows for large-volume filtration, thereby achieving inexpensive and precise filtration in industrial processes.

Features

  • With high filtration accuracy, the cartridge filter excels in the elimination of bacteria and removal of fine particles.
  • It excels in its resistance to chemicals.
  • High quality and economical

Applications

  • Filtration of drinking water and precision filtration
  • Elimination of bacteria in food and chemicals industries
  • Manufacture of ultrapure water for RO pretreatment and electronic industry
  • Filtration of air and other gases *This product is not a backwash type.

Specifications

Model Pore size
μm
Type Dimension
㎜ (1 piece)
Pressure resistance
MPa
Heat resistance
Effective filtration area
YP-40B 0.4 Standard φ69×247
*When equipped with gasket
0.49 90* 0.5
YP-60B 0.6
YP-90B 0.9
YP-250B 2.5
YP-40A 0.4 Heat resistance 90
YP-60A 0.6
YP-90A 0.9
YP-250A 2.5
YE-20 0.2 Out-core strengthened 90* 0.43
YE-40 0.4
YE-60 0.6
YE-90 0.9
YE-250 2.5

*Pressure and heat resistance of the cartridge filter depend on the condition of its use.


Number Parts Standard Heat resistance Out-core strengthened
1 Out-core (net) Polypropylene resin
2 Pre-filter and support material (non-woven fabric) Polyethylene terephthalate resin
3 Filter material Chlorinated polyvinyl chloride resin, polyethylene terephthalate resin
4 Inner tube (core) Polypropylene resin SUS304 Polypropylene resin
5 Cap Noryl resin
6 Gasket Silicone (*specially-designed: NBR, fluoro-rubber, chloroprene)

Indication of format

(1)Pore size
IndicationPore size(μm)
400.4
600.6
900.9
2502.5
(2)Heat-resistance performance
IndicationType
AHeat resistant
BStandard
(3)Hydrophilicity
IndicationType
BlankHydrophilic property
NHydrophobic property
(4)Shape
IndicationShape
FDouble open end
7226 O-ring twist lock (with fin)
9Double open end, O-ring
(5)Length
IndicationLength
1247×1
2247×2
3247×3
*When equipped with gasket: 249 mm per piece
(6)Gasket/O-ring material
IndicationGasket/O-ring material
SSilicone
BNBR
VFluoro-rubber (viton)
NChloroprene
(1)Pore size
IndicationPore size(μm)
200.2
400.4
600.6
900.9
2502.5
(2)Hydrophilicity
IndicationType
BlankHydrophilic property
NHydrophobic property
(3)Shape
IndicationShape
FDouble open end
7226 O-ring twist lock (with fin)
9Double open end, O-ring
(4)Length
IndicationLength
1247×1
2247×2
3247×3
*When equipped with gasket: 249 mm per piece
(5)Gasket/O-ring material
IndicationGasket/O-ring material
SSilicone
BNBR
VFluoro-rubber (viton)
NChloroprene

Shape

IndicationShape
FDouble open end (flat gasket)
7226 O-ring twist lock (with fin)
9Double open end, O-ring

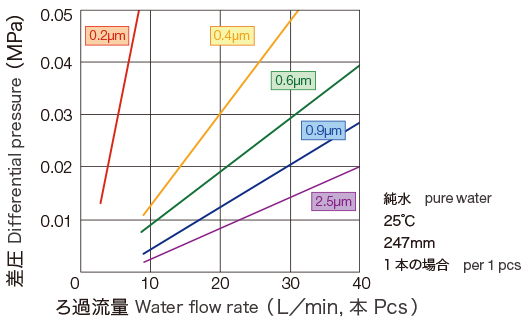

Flow characteristics
